Using Sensors and Actuators with Arduino

Introduction


The world of electronics is all about interaction – gathering information from the environment using sensors and responding to it through actuators. Arduino, with its versatility and user-friendly interface, is an ideal platform for connecting sensors and actuators to create smart and interactive projects. In this article, we will **explore** the fascinating realm of **sensor and actuator integration** with Arduino, understanding how to sense the world around us and control physical devices in response.


Why Sensors and Actuators Matter


Before we delve into the projects, let's take a moment to understand why sensors and actuators are crucial components in electronic systems. **Sensors** serve as the sensory organs of electronic projects, capturing data from the physical world. **Actuators**, on the other hand, enable electronic systems to take physical actions based on the data received. Combining sensors and actuators with Arduino empowers you to build projects that can respond intelligently to real-world conditions.


Project 1: Light-Activated LED


Difficulty: Easy


In this project, we will create a **light-activated LED** that turns on when the ambient light level falls below a certain threshold. This simple yet effective project introduces the concept of light sensing and control.


Materials Required


1. Arduino board (any model):



Arduino Board
Arduino Board

#Arduino board is a microcontroller that is used to accept inputs from sensors connected and provide an output action on the desired device connected to it. The sensor inputs can be from light-detecting sensors, motion sensors (Ultrasonic or IR), temperature sensors, etc. The output from this device can be received through other output devices such as LED, Buzzer, Serial monitor, etc.


2. LDR (Light Dependent Resistor):


LDR
LDR

A Light Dependent Resistor, commonly known as an LDR or a photoresistor, is a passive electronic component that changes its resistance based on the intensity of light falling on it. It is a crucial sensor in many electronic and electrical systems, especially those designed to respond to light levels in the environment.


3. Resistor (10kΩ):


The resistor prevents the damage of the sensor as well as the Arduino board by preventing the excessive flow of current at any situation. The value of the resistor used in this interfacing circuit is 10k.

Resistor
Resistor

4. LED:


LED
LED

LED is a semiconductor light source that emits light when a current passes through it. Electrons in the semiconductor combine with holes by passing through the gap which in turns release energy in the form of photons.


5. Breadboard:


Breadboard
Breadboard

A #breadboard is a flat piece of wood that is provided with holes that allow users to build a circuit including the components and connections without the need for soldering due to which it is reusable and finds its best usage for the students who are new to build circuits. The holes in any horizontal line will be in series whereas the vertical holes remain at an equipotential state. There are different sizes of breadboards available in the market which include "full size", "half-size" and, "mini-size" breadboards.


6. Jumper wires:


Jumper wires
Jumper wires

Jumper wires are fundamental components in electronics and prototyping, serving as flexible connectors to establish electrical connections between various components on a breadboard, circuit board, or microcontroller. These wires are indispensable tools for assembling and testing electronic circuits, allowing for quick and temporary connections


Steps


1. Connect the LDR to the Arduino analog pin and the LED to a digital pin with a resistor in series.

2. Write a code to read the analog value from the LDR and control the LED based on the light intensity.

3. Upload the code to your Arduino board using the Arduino IDE.

4. Observe the LED responding to changes in light by covering and uncovering the LDR.


Project 2: Temperature-Activated Fan


Difficulty: Moderate


In this project, we will build a **temperature-activated fan** system using a temperature sensor (LM35) and a small DC motor. The fan will turn on when the temperature exceeds a certain threshold, providing an effective way to regulate temperature in a confined space.


Materials Required


1. Arduino board:


Arduino Board
Arduino Board

#Arduino board is a microcontroller that is used to accept inputs from sensors connected and provide an output action on the desired device connected to it. The sensor inputs can be from light-detecting sensors, motion sensors (Ultrasonic or IR), temperature sensors, etc. The output from this device can be received through other output devices such as LED, Buzzer, Serial monitor, etc.


2. LM35 temperature sensor:


LM35 temperature sensor:
LM35 temperature sensor:

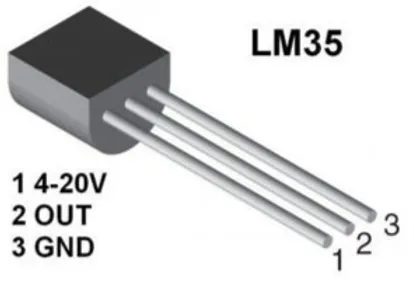

LM35 #Temperature Sensor is a temperature measuring device, gives an analog output voltage based on the instantaneous change in temperature value. This analog output voltage is proportional to the instantaneous input. It has three pins namely - supply voltage pin (Vcc), Output Voltage pin, and Ground pin (Gnd).




3. DC motor:


DC Motor
DC Motor

A DC motor, short for Direct Current motor, is a type of electrical machine that converts electrical energy from a direct current power source into mechanical motion. These motors are widely used in various applications due to their simplicity, reliability, and ease of control. Understanding the basic principles of DC motors is essential for many electronics and robotics projects.



4. Transistor (NPN):

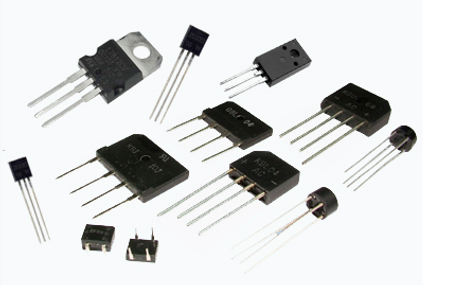

A transistor is nothing but an electrical component that is capable of switching or amplifying any electrical signal or electric power. The transistors are made up of semiconductor materials and possess at least three #terminals to establish a connection with the external circuit. The transistors perform the same function as that of vacuum tubes but using semiconductor junctions unlike heated electrodes in vacuum tubes.


Transistor
Transistor

The first transistor was made using the germanium. Nowadays, transistors are manufactured using silicon and other semiconductor materials. The basic concept of a transistor is nothing but it allows us to control the flow of current using one channel by varying the intensity of the smaller current flowing through the second channel.


The transistors can be broadly classified into bipolar junction transistors (BJT) and Field Effect Transistors (FET). Transistors played a major role in developing smaller and cheaper calculators, calculators, etc.



5. Diode:

Diode
Diode

Diodes are fundamental semiconductor devices that play a crucial role in electronics. They primarily allow the flow of electrical current in one direction while blocking it in the other direction. This property makes diodes essential components in various electronic circuits, where they serve a multitude of functions.


6. Resistor (220Ω):


Resistor
Resistor

Resistors are passive electrical components that are used to control the flow of electric current in a circuit by providing resistance to the flow. A 220-ohm resistor, as the name suggests, has a resistance value of 220 ohms. These resistors are commonly used in electronic circuits for various purposes, including current limiting, voltage division, and signal conditioning.


7. Breadboard:

Breadboard
Breadboard

A #breadboard is a flat piece of wood that is provided with holes that allow users to build a circuit including the components and connections without the need for soldering due to which it is reusable and finds its best usage for the students who are new to build circuits. The holes in any horizontal line will be in series whereas the vertical holes remain at an equipotential state. There are different sizes of breadboards available in the market which include "full size", "half-size" and, "mini-size" breadboard.


8. Jumper wires:



Jumper wires
Jumper wires

Jumper wires are fundamental components in electronics and prototyping, serving as flexible connectors to establish electrical connections between various components on a breadboard, circuit board, or microcontroller. These wires are indispensable tools for assembling and testing electronic circuits, allowing for quick and temporary connections


Steps


1. Wire the LM35 sensor and the DC motor to the Arduino, using a transistor to control the motor.

2. Develop a code to read temperature values from the LM35 sensor and activate the motor based on the temperature.

3. Upload the code to your Arduino board using the Arduino IDE.

4. Observe the fan turning on and off as the temperature changes.


Project 3: Smart Door Lock


Difficulty: Intermediate


Enhance your skills by creating a **smart door lock system** using a servo motor. The door will remain locked until a specific condition is met, such as entering the correct password using push buttons. This project integrates sensors, actuators, and user interaction.


Materials Required


1. Arduino board:


Arduino Board
Arduino Board

#Arduino board is a microcontroller that is used to accept inputs from sensors connected and provide an output action on the desired device connected to it. The sensor inputs can be from light-detecting sensors, motion sensors (Ultrasonic or IR), temperature sensors, etc. The output from this device can be received through other output devices such as LED, Buzzer, Serial monitor, etc.


2. Servo motor:



Servo motor
Servo motor

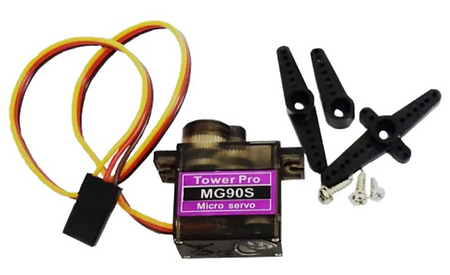

A servomotor is a rotary or linear actuator that allows for precise control of angular or linear position, velocity, and acceleration. A servomotor is a closed-loop servomechanism that uses position feedback to control its motion and final position. In this project, we can either use SG90 or MG90 servo motor.


3. Push buttons:


Push button
Push button

PUSH Buttons are simple devices used for switching control. It is easy to use and starts or stops the function when connected in a #circuit.


4. Buzzer:


Buzzer
Buzzer

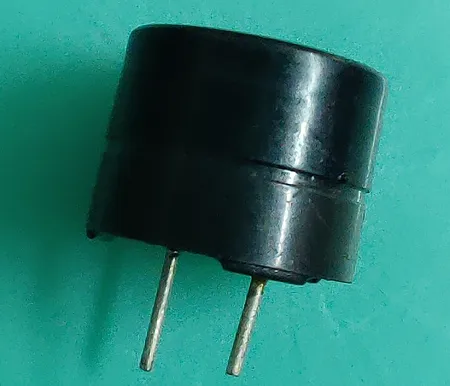

A #buzzer is a small and compact two-pin structure consisting of a positive ( longer terminal lead ) and a negative pin ( short terminal lead ). It is an audio signaling device mainly used to alarm the user with something important.


5. Breadboard:



Breadboard
Breadboard

A #breadboard is a flat piece of wood that is provided with holes that allow users to build a circuit including the components and connections without the need for soldering due to which it is reusable and finds its best usage for the students who are new to build circuits. The holes in any horizontal line will be in series whereas the vertical holes remain at an equipotential state. There are different sizes of breadboards available in the market which include "full size", "half-size" and, "mini-size" breadboard.


6. Jumper wires:


Jumper Wires
Jumper Wires

Jumper wires are fundamental components in electronics and prototyping, serving as flexible connectors to establish electrical connections between various components on a breadboard, circuit board, or microcontroller. These wires are indispensable tools for assembling and testing electronic circuits, allowing for quick and temporary connections


Steps


1. Wire the servo motor, push buttons, and buzzer to the Arduino as per the project schematic.

2. Develop a code to control the servo motor and monitor the push buttons for the correct password sequence.

3. Implement logic to activate the buzzer and deny access if the wrong password is entered.

4. Upload the code to your Arduino board using the Arduino IDE.

5. Test the smart door lock system by entering the correct and incorrect passwords.


Project 4: Sound-Activated Lights


Difficulty: Intermediate


In this project, you'll create a **sound-activated lighting system** using a microphone sensor. The LED lights will respond to sound levels, creating a dynamic visual display that reacts to the surrounding noise.


Materials Required


1. Arduino board:

Arduino Board
Arduino Board

#Arduino board is a microcontroller that is used to accept inputs from sensors connected and provide an output action on the desired device connected to it. The sensor inputs can be from light-detecting sensors, motion sensors (Ultrasonic or IR), temperature sensors, etc. The output from this device can be received through other output devices such as LED, Buzzer, Serial monitor, etc.


2. Microphone sensor (Sound Detection Sensor):



Microphone sensor
Microphone sensor

A sound sensor typically has 4 pins namely analog, digital, ground, and positive. For this interfacing, particularly the digital pin is taken into account. It has a microphone(the one in the silver color in the picture) installed in it, which is an electric microphone.


The microphone constitutes a thin diaphragm which is similar to an eardrum. The diaphragm is one plate of a capacitor and the second plate is a backplate. When a sound hits the microphone it leads to the vibration in the diaphragm. These vibrations change the voltage between the capacitor plate. In this way, one can measure the amplitude of the sound. This is how an electric microphone works.


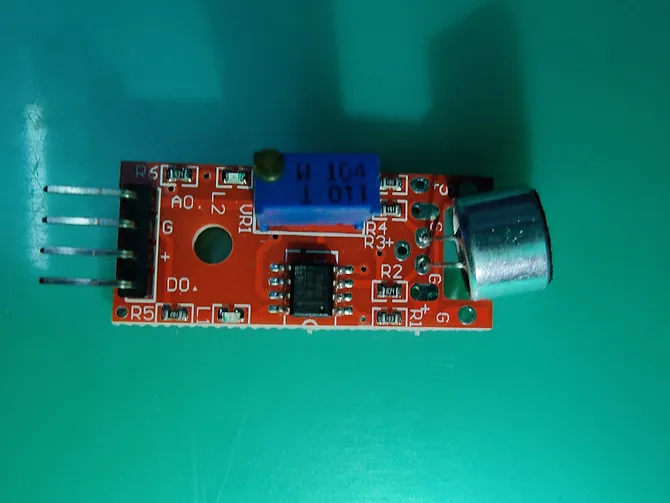

The black chip in the image is an lm393 comparator to digitalize the input. Also, there is one blue box which is a built-in potentiometer used for sensitivity adjustment. The module also has two #LEDs one for power and the other for status.

3. LEDs (multiple colors):


LED
LED

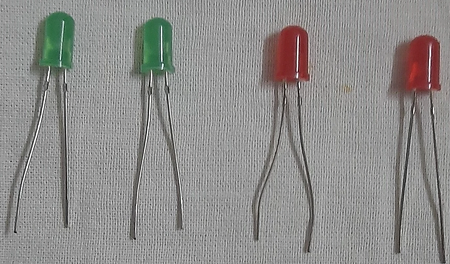

A light-emitting diode is a device that emits light when current flows through it.


4. Resistor (220Ω):


Resistor
Resistor

It is an electrical component that provides electrical resistance to a circuit. The circuit we are using is of 220 ohm.


5. Breadboard:


Breadboard
Breadboard

A #breadboard is a flat piece of wood that is provided with holes that allow users to build a circuit including the components and connections without the need for soldering due to which it is reusable and finds its best usage for the students who are new to build circuits. The holes in any horizontal line will be in series whereas the vertical holes remain at an equipotential state. There are different sizes of breadboards available in the market which include "full size", "half-size" and, "mini-size" breadboard.


6. Jumper wires:

Jumper wires
Jumper wires

Jumper wires are fundamental components in electronics and prototyping, serving as flexible connectors to establish electrical connections between various components on a breadboard, circuit board, or microcontroller. These wires are indispensable tools for assembling and testing electronic circuits, allowing for quick and temporary connections



Steps


1. Wire the microphone sensor to the Arduino and connect multiple LEDs with current-limiting resistors.

2. Write a code to read sound levels from the microphone sensor and control the brightness of the LEDs based on the sound intensity.

3. Upload the code to your Arduino board using the Arduino IDE.

4. Experiment with different sound sources and observe how the LEDs respond to varying sound levels.


Project 5: Automated Plant Watering System


Difficulty: Advanced


Combine sensors and actuators to create an **automated plant watering system**. A soil moisture sensor will monitor the moisture level of the soil, and when it falls below a certain threshold, a water pump will be activated to water the plant.


Materials Required


1. Arduino board:

Arduino Board
Arduino Board

#Arduino board is a microcontroller that is used to accept inputs from sensors connected and provide an output action on the desired device connected to it. The sensor inputs can be from light-detecting sensors, motion sensors (Ultrasonic or IR), temperature sensors, etc. The output from this device can be received through other output devices such as LED, Buzzer, Serial monitor, etc.


2. Soil moisture sensor:

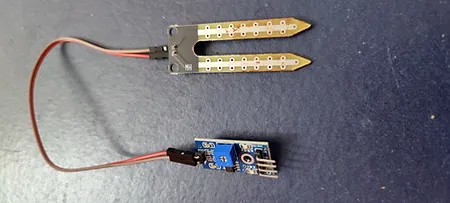

The sensor (also called a Hygrometer #sensor) is used to measure the volumetric quantity of water in the soil through the probes provided. The FC-28 sensor contains an IC on the board which is an LM323 comparator. The sensor also contains a #potentiometer embedded in it which will hold the threshold value of the moisture set by the user.


Sensor specifications.


  • Input voltage: 3.3V - 5V

  • Output voltage: 0V - 4.2V

  • Input current: 35 mAmps

  • Output: Analog or Digital (Analog Range 0 - 1023 and Digital outputs 0 or 1)


Soil moisture sensor
Soil moisture sensor

3. Water pump:

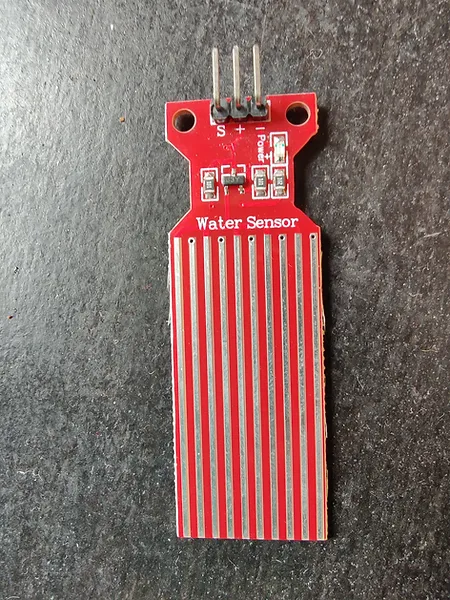

A water sensor has three pins particularly VCC, ground, and analog output pins. The #hardware of a water sensor has 10 copper traces, 5 of them are for power traces, and the rest 5 of them are sense traces. The power and sense traces are placed alternately.


Water pump:
Water pump:

4. Transistor (NPN):


A transistor is nothing but an electrical component that is capable of switching or amplifying any electrical signal or electric power. The transistors are made up of semiconductor materials and possess at least three #terminals to establish a connection with the external circuit. The transistors perform the same function as that of vacuum tubes but using semiconductor junctions unlike heated electrodes in vacuum tubes.


Transistor
Transistor

The first transistor was made using the germanium. Nowadays, transistors are manufactured using silicon and other semiconductor materials. The basic concept of a transistor is nothing but it allows us to control the flow of current using one channel by varying the intensity of the smaller current flowing through the second channel.


The transistors can be broadly classified into bipolar junction transistors (BJT) and Field Effect Transistors (FET). Transistors played a major role in developing smaller and cheaper calculators, calculators, etc.


5. Diode:

Diode
Diode

Diodes are fundamental semiconductor devices that play a crucial role in electronics. They primarily allow the flow of electrical current in one direction while blocking it in the other direction. This property makes diodes essential components in various electronic circuits, where they serve a multitude of functions.


6. Relay module:

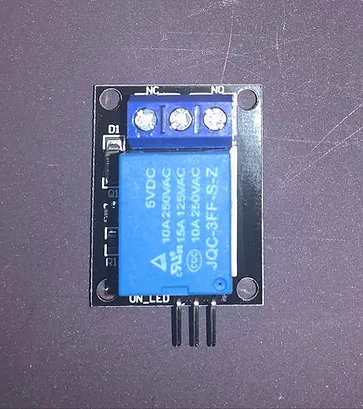

It is an electrical switch in a circuit. It will on/off the circuit. Also, it can be controlled by fewer voltages like 5V from #Arduino.


Relay Module
Relay Module

7. Breadboard:


Breadboard
Breadboard

A #breadboard is a flat piece of wood that is provided with holes that allow users to build a circuit including the components and connections without the need for soldering due to which it is reusable and finds its best usage for the students who are new to build circuits. The holes in any horizontal line will be in series whereas the vertical holes remain at an equipotential state. There are different sizes of breadboards available in the market which include "full size", "half-size" and, "mini-size" breadboards.


8. Jumper wires:


Jumper Team
Jumper Team

Jumper wires are fundamental components in electronics and prototyping, serving as flexible connectors to establish electrical connections between various components on a breadboard, circuit board, or microcontroller. These wires are indispensable tools for assembling and testing electronic circuits, allowing for quick and temporary connections



Steps


1. Wire the soil moisture sensor and water pump to the Arduino, using a relay module to control the pump.

2. Develop a code to read soil moisture levels from the sensor and activate the water pump when the moisture is low.

3. Upload the code to your Arduino board using the Arduino IDE.

4. Observe the automated system in action as it waters the plant when the soil becomes dry.


Project 6: Home Security System


Difficulty: Advanced


Create a comprehensive **home security system** using a combination of sensors and actuators. The system will detect motion using a PIR sensor, capture images with a camera module, and send alerts through email or SMS.


Materials Required


1. Arduino board:

Arduino board
Arduino board

#Arduino board is a microcontroller that is used to accept inputs from sensors connected and provide an output action on the desired device connected to it. The sensor inputs can be from light-detecting sensors, motion sensors (Ultrasonic or IR), temperature sensors, etc. The output from this device can be received through other output devices such as LED, Buzzer, Serial monitor, etc.


2. PIR motion sensor:


PIR sensor detects and measures the infrared radiation emitting from the objects present in its range of application. #PIRsensor is commonly used in motion detection applications.



PIR motion sensor
PIR motion sensor

3. Camera module (e.g., Raspberry Pi Camera):


Camera module
Camera module

#Raspberry Pi board can have a Pi camera module attached to it through a 15 line ribbon connector. The Pi Module further enables the board to capture photos and videos with the help of the Pi module. The code must be used specifically for the function.


4. WiFi module (ESP8266 or ESP32):


WiFi module
WiFi module

ESP8266 is a low-cost microcontroller chip that is used to interface various hardware components. It has inbuilt #WiFi and Bluetooth capabilities, making it a better candidate for IoT projects and Developments. Also, it is very cost-efficient as well as consumes less power. It allows us to use it as a micro-controller and manipulate input and output.



5. Breadboard:


Breadboard
Breadboard

A #breadboard is a flat piece of wood that is provided with holes that allow users to build a circuit including the components and connections without the need for soldering due to which it is reusable and finds its best usage for the students who are new to build circuits. The holes in any horizontal line will be in series whereas the vertical holes remain at an equipotential state. There are different sizes of breadboards available in the market which include "full size", "half-size" and, "mini-size" breadboards.


6. Jumper wires:


Jumper wires
Jumper wires

Jumper wires are fundamental components in electronics and prototyping, serving as flexible connectors to establish electrical connections between various components on a breadboard, circuit board, or microcontroller. These wires are indispensable tools for assembling and testing electronic circuits, allowing for quick and temporary connections



Steps


1. Wire the PIR sensor, camera module, and WiFi module to the Arduino.

2. Develop a code to detect motion using the PIR sensor, capture images with the camera module, and send alerts using the WiFi module.

3. Upload the code to your Arduino board using the Arduino IDE.

4. Set up a remote monitoring system to receive alerts and view captured images.


Conclusion


As you've explored various projects integrating sensors and actuators with Arduino, you've unlocked a world of possibilities for creativity and innovation. From simple light-activated systems to complex home automation solutions, Arduino empowers you to transform ideas into reality. By combining your newfound knowledge of sensors, actuators, and programming, you're well-equipped to tackle a wide range of projects that enhance efficiency, interactivity, and practicality in various domains.


Remember that every project you embark on contributes to your expertise and opens the door to even more advanced endeavors. So, embrace the journey of experimentation, continue learning, and let your imagination guide you as you create remarkable projects that harness the power of sensors and actuators with Arduino.
