Interfacing LCDs and Keypads with Arduino

Introduction


Liquid Crystal Displays (LCDs) and keypads are essential components in the world of electronics, serving as powerful tools for both information display and user interaction. The combination of Arduino and these components offers a gateway to creating intuitive and engaging projects. In this article, we'll not only explore the basics of interfacing LCDs and keypads with Arduino but also delve into advanced techniques and project ideas that harness their potential to the fullest.



Circuit
Circuit

Understanding LCDs and Keypads


Liquid Crystal Displays (LCDs)


LCDs are a staple of modern electronics, providing a visual medium to convey data, messages, and even intricate graphics. Their versatility and clarity make them an ideal choice for projects ranging from simple text displays to complex information dashboards. Interfacing an LCD with Arduino allows you to transform your concepts into visually appealing and informative displays.


Keypads


Keypads bridge the gap between humans and electronics by enabling tactile input. They find applications in devices that require user interaction, such as calculators, security systems, and automation interfaces. By interfacing a keypad with Arduino, you unlock the ability to capture user inputs, facilitate navigation, and create interactive user experiences.


Project 1: Displaying Text on an LCD


Difficulty: Easy


In this project, we'll take the fundamental step of interfacing a standard 16x2 LCD with Arduino. However, we'll extend this project beyond mere text display by incorporating dynamic scrolling and real-time data updates.


Materials Required:


1.Arduino board:

Arduino Board
Arduino Board

Arduino is an open-source programmable microcontroller that can be programmed to sense and control objects in the physical world. By responding to sensors and inputs the Arduino board can interact with a wide variety of outputs such as LED’s, motors, LCDs, etc.


To know more about the Arduino UNO, refer to this article.


2.16x2 LCD module:


Liquid crystal display(LCD)
Liquid crystal display(LCD)

Liquid Crystal Display is a flat electronic panel of display that uses the light modulating properties of liquid crystals to display clear images.


3.Potentiometer (10kΩ):



Potentiometer
Potentiometer

A #potentiometer is an adjustable variable resistor with 3 terminals. Two terminals are connected to the two ends of a resistive element, and the third terminal is connected to a sliding contact also called a wiper that moves over the resistive element. The position of the wiper determines the output voltage of the potentiometer.


4.Breadboard:


Breadboard
Breadboard

A #breadboard is a construction base for building electronic circuits. It has many holes into which circuit components like ICs and resistors can be inserted.


Breadboard
Breadboard

The holes in the terminals are connected horizontally and the holes in the middle are connected vertically.


5.Jumper wires:


Jumper Wires
Jumper Wires

Jumper wires are a group of electrical wires, with a connector at each end, which is used to interconnect the components of a prototype circuit.


Steps

  1. Establish the physical connections between the Arduino, LCD, and potentiometer.

  2. Utilize the LiquidCrystal library to initialize and control the LCD.

  3. Enhance the basic text display by implementing scrolling text and dynamic content updates.

  4. Upload the code to your Arduino board and observe the LCD's dynamic display capabilities.

Tips

  1. Consider using an I2C adapter for the LCD to reduce the number of wires and simplify connections.

  2. Experiment with different scrolling speeds and directions to create eye-catching displays.

  3. Explore the possibility of adding sensor inputs (e.g., temperature or light sensors) to dynamically update the displayed content.

Common Mistakes

  1. Ensure proper pin connections; mismatched or loose wires can result in display issues.

  2. Watch for excessive current draw, especially when using backlit displays. Use appropriate resistors to limit current if needed.


Project 2: Creating an Interactive Menu


Difficulty: Moderate


Building upon the foundation of keypad interfacing, we'll design an interactive menu system that allows users to navigate through different options and make selections.


Materials Required


1.Arduino board:



Arduino Board
Arduino Board

Arduino is an open-source programmable microcontroller that can be programmed to sense and control objects in the physical world. By responding to sensors and inputs the Arduino board can interact with a wide variety of outputs such as LED’s, motors, LCDs, etc.


To know more about the Arduino UNO, refer to this article.


2. 4x4 matrix keypad:


4x4 Matrix keypad
4x4 Matrix keypad


A 4x4 matrix keypad is used as an input device that takes inputs from the users. It consists of 16 pins in total with four rows and four columns. On pressing a key, a connection will be established between the corresponding row and column between which the switch is placed.


3.Breadboard:



Breadboard
Breadboard

A #breadboard is a construction base for building electronic circuits. It has many holes into which circuit components like ICs and resistors can be inserted.


4.Jumper wires:


Jumper Wires
Jumper Wires

Jumper wires are a group of electrical wires, with a connector at each end, which is used to interconnect the components of a prototype circuit.


Steps

  1. Establish the necessary connections between the Arduino and keypad.

  2. Leverage the Keypad library to capture user input and respond to button presses.

  3. Develop a menu structure that provides users with selectable options.

  4. Implement logic to execute specific actions based on user selections.

  5. Upload the code to your Arduino board and test the interactive menu.

Tips

  1. Implement debounce algorithms to handle button press events more effectively.

  2. Enhance user experience by adding feedback, such as highlighting the selected option.

  3. Consider incorporating a timeout feature to return to the main menu if there's no user input for a certain period.

Common Mistakes


  1. Make sure the keypad is correctly wired; incorrect connections can lead to button recognition errors.

  2. Be mindful of memory usage when designing complex menu structures, as limited memory on some Arduino boards can be a constraint.



Project 3: Weather Station with LCD


Difficulty: Intermediate


Combine the capabilities of a temperature and humidity sensor with an LCD to create a functional weather station that provides real-time environmental data.


Materials Required


1. Arduino board:


Arduino Board
Arduino Board

Arduino is an open-source programmable microcontroller that can be programmed to sense and control objects in the physical world. By responding to sensors and inputs the Arduino board can interact with a wide variety of outputs such as LED’s, motors, LCDs, etc.



2. DHT11 temperature and humidity sensor:

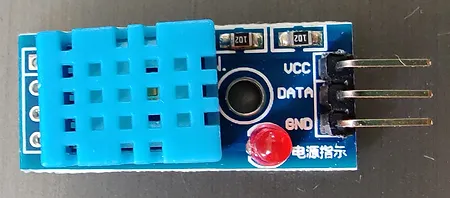

DHT11 temperature and humidity sensor
DHT11 temperature and humidity sensor


The DHT11 #sensor is a low-cost digital sensor used to measure temperature and humidity levels. The sensor contains a capacitive humidity sensor for detecting the humidity level. For measuring the temperature this sensor employs a thermistor that has a negative temperature coefficient. It is small-sized and has an operating voltage from 3 to 5 volts.


The sensor has four pins namely - supply pin (Vcc), Output pin (Data), No connection (NC), and Ground pin (Gnd). The DHT11 has a module consists of three pins. They are the supply pin (Vcc), the output pin (Data), and the Ground pin (Gnd).


Buy DHT11 Sensor Module from here


3. 16x2 LCD module:

16x2 LCD
16x2 LCD

Liquid Crystal Display is a flat electronic panel of display that uses the light modulating properties of liquid crystals to display clear images.


4. Potentiometer (10kΩ):


Potentiometer
Potentiometer

A #potentiometer is an adjustable variable resistor with 3 terminals. Two terminals are connected to the two ends of a resistive element, and the third terminal is connected to a sliding contact also called a wiper that moves over the resistive element. The position of the wiper determines the output voltage of the potentiometer.


5. Breadboard:


Breadboard
Breadboard

A #breadboard is a construction base for building electronic circuits. It has many holes into which circuit components like ICs and resistors can be inserted.


6. Jumper wires:


Jumper Wires
Jumper Wires


Jumper wires are a group of electrical wires, with a connector at each end, which is used to interconnect the components of a prototype circuit.


Steps


1. Establish the physical connections between the Arduino, DHT11 sensor, LCD, and potentiometer.

2. Utilize appropriate libraries to read temperature and humidity data from the sensor.

3. Display the real-time data on the LCD, incorporating units and labels.

4. Enhance the project by implementing trend analysis or historical data display.

5. Upload the code to your Arduino board and observe the weather station in action.


Tips

  1. Explore online weather APIs to fetch real-time weather data and display it on your weather station.

  2. Add a clock module to display not only the current weather but also the time and date.

  3. Consider using different types of temperature and humidity sensors (e.g., DHT22 or BME280) for improved accuracy.

Common Mistakes

  1. Check for sensor calibration issues; some sensors may require calibration to provide accurate data.

  2. Ensure that your power supply can handle the combined current requirements of the Arduino, sensor, and LCD, especially if running on batteries.


Project 4: Text Entry and Display System


Difficulty: Advanced


Combine the power of an LCD and keypad to create a text entry and display system that enables users to compose messages and view them on the screen.


Materials Required


1. Arduino board:


Arduino Board
Arduino Board

Arduino is an open-source programmable microcontroller that can be programmed to sense and control objects in the physical world. By responding to sensors and inputs the Arduino board can interact with a wide variety of outputs such as LED’s, motors, LCDs, etc.


2. 16x2 LCD module:


16x2 LCD
16x2 LCD


Liquid Crystal Display is a flat electronic panel of display that uses the light modulating properties of liquid crystals to display clear images.


3. 4x4 matrix keypad:


4x4 matrix keypad
4x4 matrix keypad

A 4x4 matrix keypad is used as an input device that takes inputs from the users. It consists of 16 pins in total with four rows and four columns. On pressing a key, a connection will be established between the corresponding row and column between which the switch is placed.


4. Breadboard:


Breadboard
Breadboard

A #breadboard is a construction base for building electronic circuits. It has many holes into which circuit components like ICs and resistors can be inserted.


5. Jumper wires:

Jumper wires
Jumper wires

Jumper wires are a group of electrical wires, with a connector at each end, which is used to interconnect the components of a prototype circuit.


Steps


1. Establish the necessary connections between the Arduino, LCD, and keypad.

2. Design an interface that allows users to input text using the keypad.

3. Implement a scrolling text entry mechanism and handle text composition.

4. Display the composed text on the LCD, making efficient use of the limited display space.

5. Upload the code to your Arduino board and experiment with text entry and display.


Tips

  1. Implement character validation to restrict input to specific characters or patterns.

  2. Create a simple user interface to edit or delete characters in the text entry.

  3. Save composed text to external storage (e.g., an SD card) for future retrieval or analysis.

Common Mistakes:

  1. Double-check the keypad wiring and button mapping to avoid input errors.

  2. Handle edge cases such as text overflow or underflow gracefully to prevent display issues or program crashes.


Conclusion


Interfacing LCDs and keypads with Arduino empowers you to create projects that seamlessly blend information display and user interaction. From dynamic text displays to interactive menus and data-rich weather stations, the possibilities are as vast as your creativity allows. As you continue your journey in the world of electronics and programming, remember that the synergy between LCDs, keypads, and Arduino opens doors to a realm of innovation and user-centric design.


By mastering the art of interfacing, you become the architect of intuitive interfaces and engaging user experiences. So, continue to explore, experiment, and challenge yourself to create projects that not only capture data and display information but also foster meaningful interactions between humans and technology.


Embrace the potential of LCDs and keypads, and let them become your canvas for storytelling, information sharing, and user empowerment.
