Understanding Ohm's Law and Kirchhoff's Voltage and Current Laws

Updated: Sep 15

In the world of electrical engineering, there are fundamental principles and laws that govern the behavior of electric circuits. Two of the most important laws are Ohm's Law and Kirchhoff's Voltage and Current Laws. Understanding these laws is crucial for anyone working with electricity or studying electrical engineering. In this comprehensive article, we will delve into the intricacies of Ohm's Law and Kirchhoff's Laws, providing you with a solid understanding of their concepts, applications, and significance.



Ohm's Law: The Relationship Between Voltage, Current, and Resistance

Relationship Between Voltage, Current, and Resistance

What is Ohm's Law?


Ohm's Law, named after the German physicist Georg Simon Ohm, states that the current flowing through a conductor between two points is directly proportional to the voltage across the two points, and inversely proportional to the resistance of the conductor. Mathematically, Ohm's Law can be expressed as:


V = I * R


Where:

  • V represents the voltage across the conductor,

  • I represent the current flowing through the conductor, and

  • R represents the resistance of the conductor.

What is Ohm's Law?

Understanding Voltage, Current, and Resistance


Voltage, expressed in volts (V), is the electrical potential difference between two points in a circuit. It represents the force that drives the flow of electrons.

What is voltage?

Current, expressed in amperes (A), is the rate of flow of electric charge in a circuit. It represents the amount of charge passing through a point in the circuit per unit of time.

What is current?

Resistance, expressed in ohms (Ω), is the opposition to the flow of current in a circuit. It depends on the physical properties and dimensions of the conductor, as well as the material it is made of.

What is resistance?

Applications of Ohm's Law


Ohm's Law is the cornerstone of electrical circuit analysis and design. It provides a fundamental framework for calculating and predicting the behavior of electric circuits. Engineers and technicians rely on Ohm's Law to determine voltages, currents, and resistances in various circuit components.



By applying Ohm's Law, one can determine the values of resistors needed to achieve specific current or voltage requirements. Additionally, Ohm's Law helps in understanding power relationships, as power can be calculated using the formula:


P = V * I


Where:

  • P represents the power in watts (W),

  • V represents the voltage in volts (V), and

  • I represent the current in amperes (A).


Kirchhoff's Voltage and Current Laws: Analyzing Complex Circuits

Kirchhoff's Voltage Law and Kirchoff's Current Law

Kirchhoff's Voltage Law (KVL)

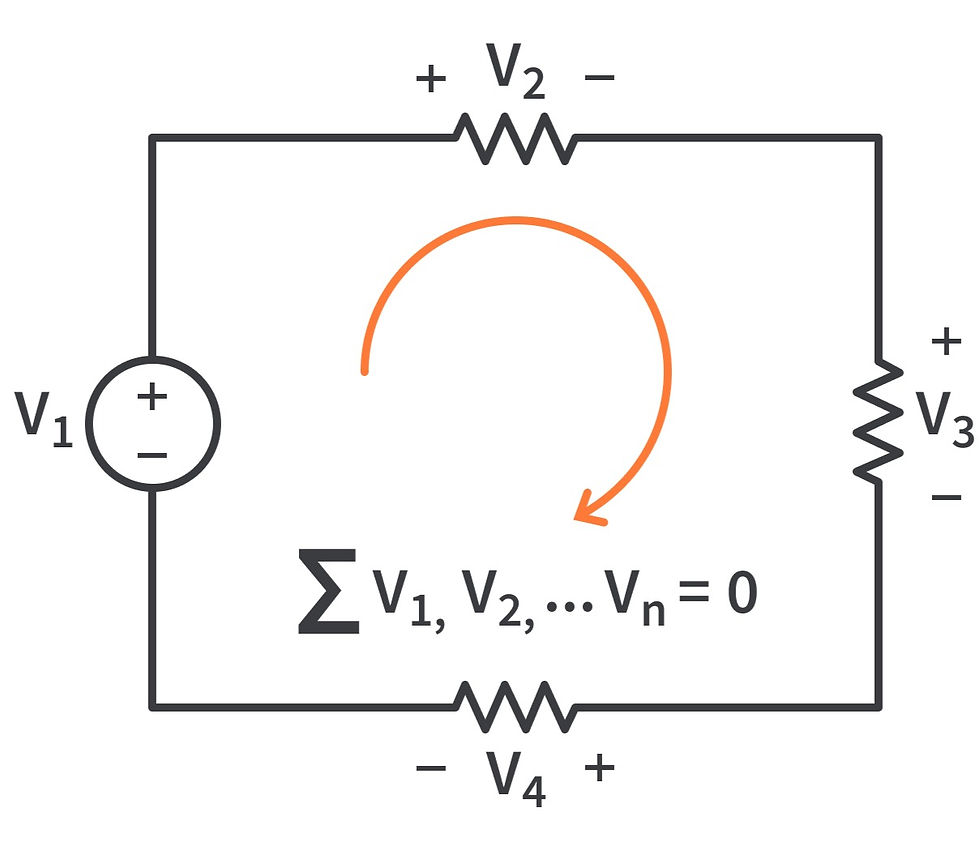

Kirchhoff's Voltage Law, often abbreviated as KVL, states that the algebraic sum of the voltages in any closed loop or mesh in a circuit is equal to zero. In simpler terms, the sum of the voltage rises must equal the sum of the voltage drops within a closed loop.

Kirchhoff's Voltage Law (KVL)
Kirchhoff's Voltage Law (KVL)

V 1 + V 2 + V 3 + V 4 = 0


KVL is based on the principle of conservation of energy, which states that energy cannot be created or destroyed, only transferred or transformed. By applying KVL, engineers can analyze complex circuits and determine the voltages across different components.


Image Source - Kirchhoff's Voltage Law




Kirchhoff's Current Law (KCL)


Kirchhoff's Current Law, commonly known as KCL, states that the sum of currents entering a junction or node in a circuit is equal to the sum of currents leaving that junction. In other words, the total current entering a node is equal to the total current exiting the node.

Kirchhoff's Current Law (KCL)
Kirchhoff's Current Law (KCL)

Σ IIN = Σ IOUT


KCL is derived from the principle of charge conservation, which asserts that electric charge cannot be created or destroyed. By applying KCL, engineers can analyze complex circuits and determine the current flowing through different branches or components. KCL allows for the precise calculation of currents in various parts of a circuit, aiding in circuit design and troubleshooting.


Image Source - Kirchhoff's Current Law


Importance of Understanding Ohm's Law and Kirchhoff's Laws


Safety Considerations


A solid understanding of Ohm's Law and Kirchhoff's Laws is essential for ensuring electrical safety. When working with circuits, it is crucial to have a clear understanding of the relationship between voltage, current, and resistance. This knowledge helps prevent the overloading of components, which can lead to equipment damage, electrical fires, or even electrocution. By adhering to these laws, engineers and technicians can design and implement safe electrical systems.



Circuit Analysis and Design


Ohm's Law and Kirchhoff's Laws serve as fundamental tools for circuit analysis and design. Whether it's calculating the appropriate resistor values for specific current requirements or analyzing complex circuits, these laws provide a systematic approach to understanding and predicting circuit behavior. By applying these laws, engineers can ensure the desired performance of electrical systems and troubleshoot any issues that may arise.


Troubleshooting and Fault Finding


When faced with circuit malfunctions or faults, a solid understanding of Ohm's Law and Kirchhoff's Laws can greatly aid in troubleshooting. By applying these principles, engineers can identify the root causes of issues and determine the necessary corrective measures. Whether it's a faulty component, a wiring problem, or an overloaded circuit, the knowledge of these laws enables effective problem-solving.


Electronic Device Design


In the world of electronic device design, the application of Ohm's Law and Kirchhoff's Laws is crucial. Engineers rely on these laws to design circuits that meet specific performance requirements. By understanding the relationship between voltage, current, and resistance, engineers can ensure that electronic devices function as intended. This knowledge allows for the optimization of power consumption, voltage regulation, and overall circuit efficiency.



Conclusion


In conclusion, a thorough understanding of Ohm's Law and Kirchhoff's Voltage and Current Laws is paramount for anyone working with electricity or studying electrical engineering. These laws provide the foundation for circuit analysis, design, and troubleshooting. By comprehending the relationships between voltage, current, and resistance, engineers and technicians can ensure electrical safety, design efficient circuits, and effectively troubleshoot issues. Embracing the principles of Ohm's Law and Kirchhoff's Laws empowers individuals to harness the power of electricity responsibly and make significant contributions to the field of electrical engineering.


Remember, grasping the concepts and applications of Ohm's Law and Kirchhoff's Laws takes time and practice. Continuously honing your understanding of these laws will not only benefit your professional endeavors but also enhance your ability to comprehend and work with electrical systems effectively.
